> Hydraulic Metalworking Tools
hydraulic processing tools
- Brand:JETECO Tools
- Product Name:hydraulic processing tools
- Product description: CB-150D and CB-200A hydraulic bending, CWC-150 and CWC-200 hydraulic cutting, CH-60 and CH-70 hydraulic hole punching machine
Product introduction

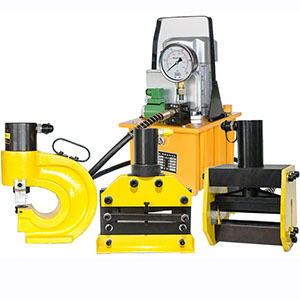

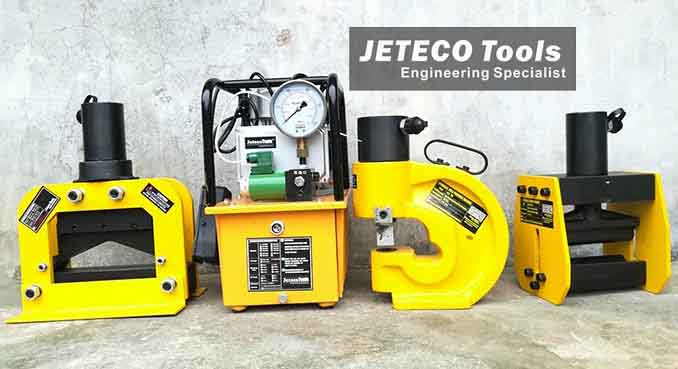

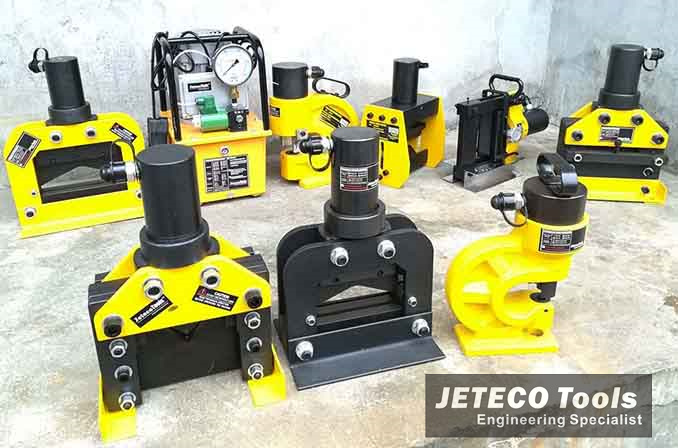

JETECO Tools hydraulic bending cutting hole punching machines, including CB-150D and CB-200A hydraulic bending, CWC-150 and CWC-200 hydraulic cutting, CH-60 and CH-70 hydraulic hole punching units, as well as CWC-150V and CWC-200V double cutting hydraulic cutters. Professional hydraulic tools for copper busbar and steel plate processing.

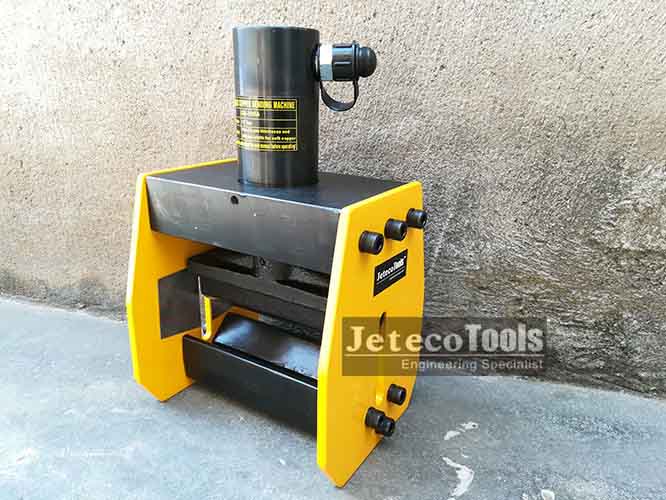

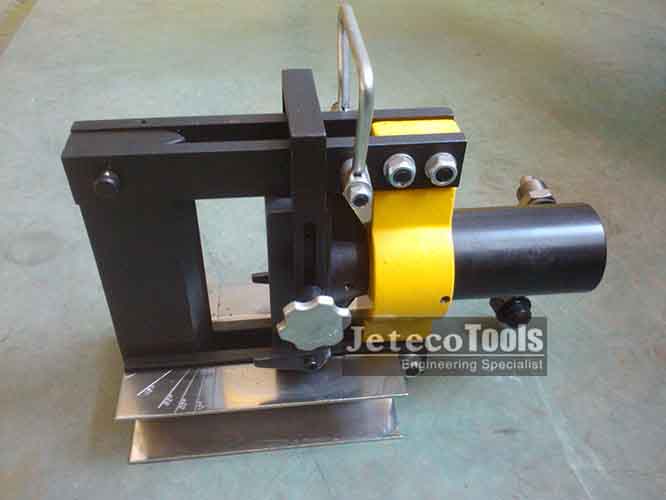

Benders:
| CB-150D | Bending up to 10mm thickness and 150mm of width, of copper bus bar |
| CB-200A | Bending up to 12mm thickness and 200mm of width, of copper bus bar |

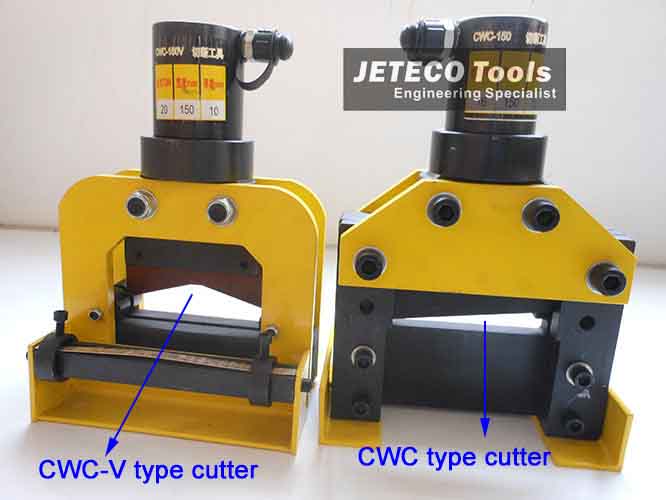

Cutters:
| CWC-150 | Cutting up to 10mm thickness, 150mm of width, base on copper busbar |
| CWC-200 | Cutting up to 12mm thickness, 200mm of width, base on copper busbar |
| CWC-150V | Double cutting, up to 10mm thickness, 150mm of width, of copper bus bar |
| CWC-200V | Double cutting, up to 12mm thickness, 200mm of width, of copper bus bar |

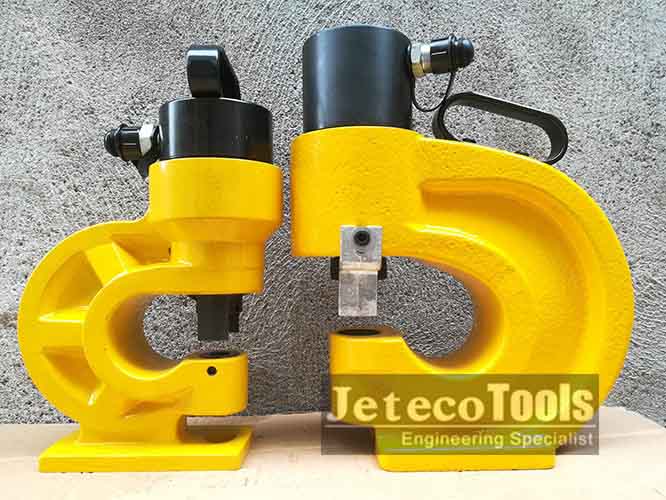

Hydraulic punchers:
| CH-60 |
95mm of punching throat, up to 10mm thickness of copper bus bar. Including 6 round sizes hole punch die 7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm |
| CH-70 |
110mm of punching throat, up to 12mm thickness of copper busbar. Including 6 round sizes hole punch die 7mm, 9mm, 10.5mm, 13.8mm, 17mm, 20.5mm |

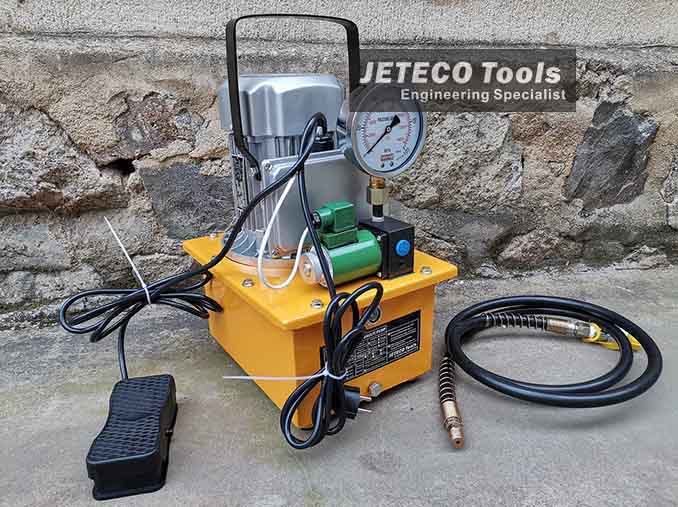

Electric hydraulic pump:
Driven by electric motor hydraulic pump power pack, operated by pedal control with remote cable switch system. Can be for AC power supply 220 volts, 110 volts, or 380 volts. With 10000Psi 700Bar pressure, 1.8 meters length of oil hose. 0.75KW of working rate. Can be optional for single acting, 2 acting, or 3 acting working unit.
For more information, please feel free to contact us for an inquiry, we thank you for visiting our website!
